KTPPL608

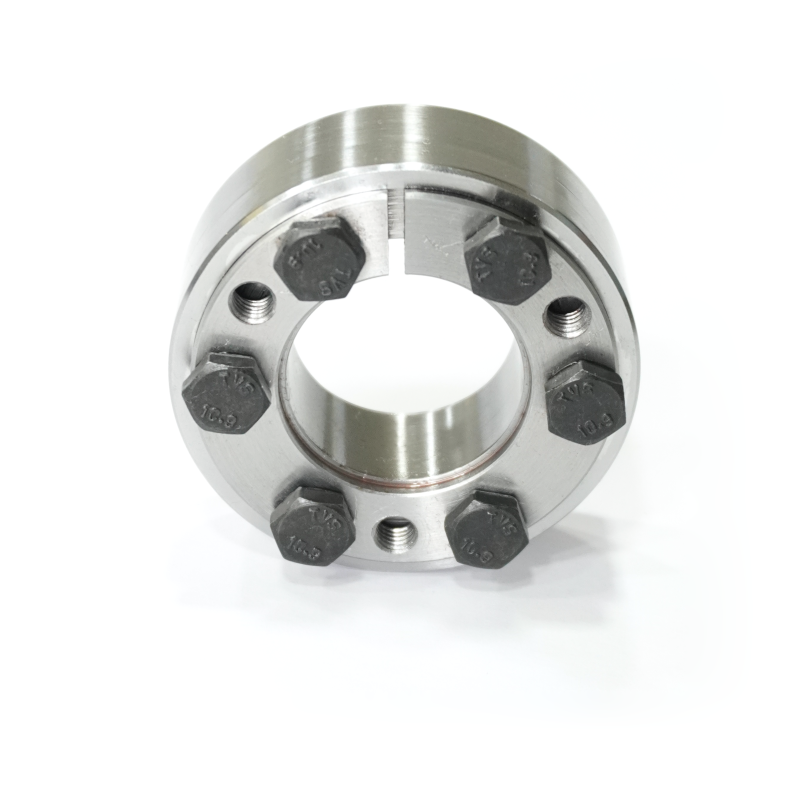

This is 2 piece + clamping bolts keyless clamping element.
This is very compact Keyless Clamping Element. This can be used in case of less space availability

Ordering Code : KTPPL608 d  x D

KTPPL608: Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Maintains the concentricity of Shaft and Hub.
  • Suitable for High Torque and High Bending Moments.
  • Creates low Surface Pressure.
  • No axial displacement of Hub.
  • Torque transmission ranges from 333 Nm to 4267250 Nm for standard sizes.
  • Shaft diameter ranges from 30 mm to 620 mm for standard sizes.
  • Compact
  • Easy assembly and easy dismantling with detaching screws.
  • Suitable for static, dynamic and impact loads.
  • Suitable for high RPM.

REQUIREMENTS

  • Shaft diameter tolerance: f9
  • dw tolerance: Till Ø 160: H7-h6, after Ø 160: H7-g6
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

Dimentional Details
Dimension Details mm Torque
Mt Nm 		 Axial
Force
Fax KN		 Screw Details
Size No. Tightening
Torque Nm

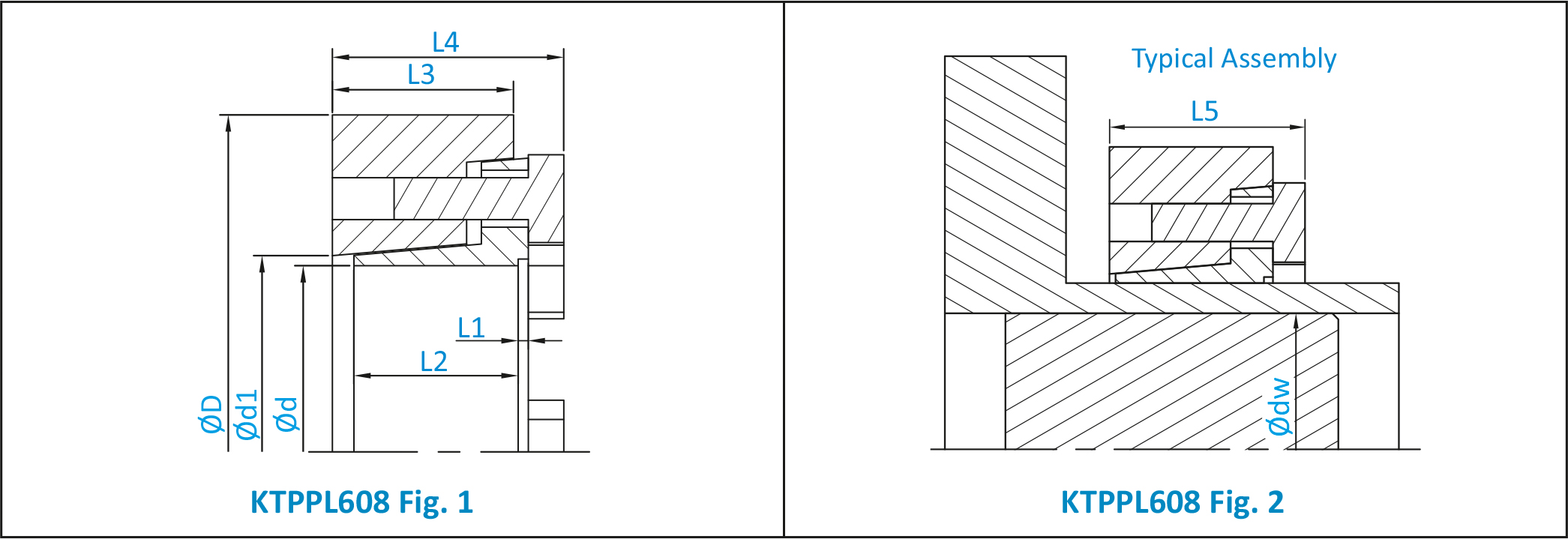

Ød x Ø D L1  L2  L3  L4  L5  Ød1  Ø dw
30×60 2 16.5 19 23 25 32 24 333 27 M6 6 12
25 374 29
26 419 31
36×72 2 18 20.5 25.8 28 38 27 667 48 M8 5 35
30 859 56
33 1081 64
44×80 2 20 22.5 27.8 30 47 34 960 55 M8 6 35
35 1040 58
37 1212 64
50×90 2 22 24.5 29.8 33 53 38 1768 93 M8 8 35
40 2020 101
42 2273 106
55×100 3 23 26.5 31.8 35 58 42 2071 98 M8 8 35
45 2424 101
48 2828 111
62×110 3 23 26.5 31.8 35 66 48 2929 121 M8 9 35
50 3232 121
52 3586 131
68×115 3 23 26.5 31.8 35 72 50 3030 121 M8 9 35
55 3838 131
60 4697 151
75×138 3 25 29 35.4 40 79 55 4949 171 M10 10 70
60 6161 201
65 7474 221
80×141 3 25 29 35.4 40 84 60 5252 171 M10 10 70
65 6464 191
70 7777 221
90×155 4 30 35 41.4 46 94 65 6969 211 M10 10 70
70 8282 231
75 9797 251
100×170 5 34 40 46.4 51 104 70 8888 251 M10 12 70
75 10454 272
80 12120 302
105×185 6 39 46 53.5 59 114 80 15655 382 M12 12 121
85 17978 412
90 27270 443
110×185 6 39 46 53.5 59 114 80 15655 382 M12 12 121
85 17978 412
90 20200 443
120×200 6 42 49 56.5 63 124 85 17372 402 M12 12 121
90 19897 433
95 22523 463
125×215 6 42 49 56.5 63 132 90 19342 422 M12 12 121
95 21917 453
100 24644 483
130×230 6 46 53 60.5 68 139 95 26159 543 M12 14 121
100 29290 583
110 36360 654
140×230 6 46 53 61.8 71 144 100 27270 543 M14 12 190
105 30502 573
115 37370 644
150×263 6 50 57 65.8 75 159 110 36057 644 M14 12 190
115 39895 684
125 47975 764
155×263 6 50 57 65.8 75 159 110 36562 654 M14 12 190
115 40400 694
125 48480 764
160×290 6 56 63 73 82 169 120 56560 935 M16 12 290
125 61610 976
135 73225 1006
165×290 6 56 63 73 82 169 120 57065 946 M16 12 290
125 62115 986
135 73225 1006
170×300 6 56 63 73 82 179 130 61610 935 M16 12 290
135 67165 986
145 78780 1006
175×300 6 56 63 73 82 179 130 62115 946 M16 12 290
135 67670 996
140 73225 1006
180×320 6 72 79 89 99 191 140 98475 1308 M16 16 290
145 106050 1408
155 123220 1509
185×320 6 72 79 89 99 191 140 96960 1308 M16 16 290
145 105040 1408
155 121200 1509
190×320 7 71 79 89 100 195 150 92920 1207 M16 16 290
155 99990 1207
165 114635 1308
195×340 7 71 79 89 100 206 150 108070 1408 M16 16 290
155 116150 1408
165 130290 1509
200×340 7 71 79 89 100 206 150 109080 1408 M16 16 290
155 117160 1408
165 131300 1509
220×370 7 87 95 108 121 228 160 161600 2012 M20 16 490
170 183820 2112
180 208060 2213
240×405 7 92 100 113 127 248 170 191900 2213 M20 18 490
180 217150 2314
200 271690 2615
260×430 7 102 110 123 137 268 190 249470 2615 M20 21 490
200 279770 2716
220 343400 3018
280×460 7 115 123 136 150 288 210 338350 3118 M20 22 490
220 373700 3319
240 453490 3722
300×485 8 122 131 146 162 308 220 389860 3521 M24 20 840
230 429250 3621
250 513080 4023
320×520 8 116 125 140 158 328 240 470155 3822 M24 18 840
250 514090 4023
270 606000 4023
340×570 8 127 136 151 170 348 250 569640 4526 M24 20 840
260 618120 4728
280 726190 5130
360×590 8 133 142 157 177 369 270 664580 4828 M24 20 840
280 719120 5029
300 833250 5532
390×650 8 144 153 172 195 399 290 912030 6236 M30 18
300 979700 6438
320 1121100 6941
420×670 4 162 167 189 203 428 320 1094840 6739 M27 20 1250
330 1169580 7041
350 1326130 7544
440×725 6 173 180 202 222 448 340 1366530 7946 M27 21 1250
350 1454400 8248
370 1637210 8751
460×760 6 173 180 202 225 468 360 1524090 8349 M27 21 1250
370 1616000 8650
390 1807900 9153
480×790 3 198 202 226 249 488 380 1878600 9757 M30 21 1600
390 1985660 10059
410 2207860 10662
500×835 3 195 199 223 244 508 400 2118980 10461 M30 24 1600
410 2232100 10763
430 2469450 11366
530×870 3 213 216 240 266 538 430 2671450 12372 M30 24 1600
440 2804770 12573
460 3080500 13076
560×920 3 217 221 245 269 568 450 2805780 12070 M30 24 1600
460 2941120 12573
480 3221900 13076
590×960 4 232 237 261 284 598 470 3270380 13579 M30 28 1600
480 3419860 14082
500 3729930 14585
620×970 4 254 259 283 310 630 500 3620850 14082 M30 28 1600
520 3936980 14585
540 4267250 15591
