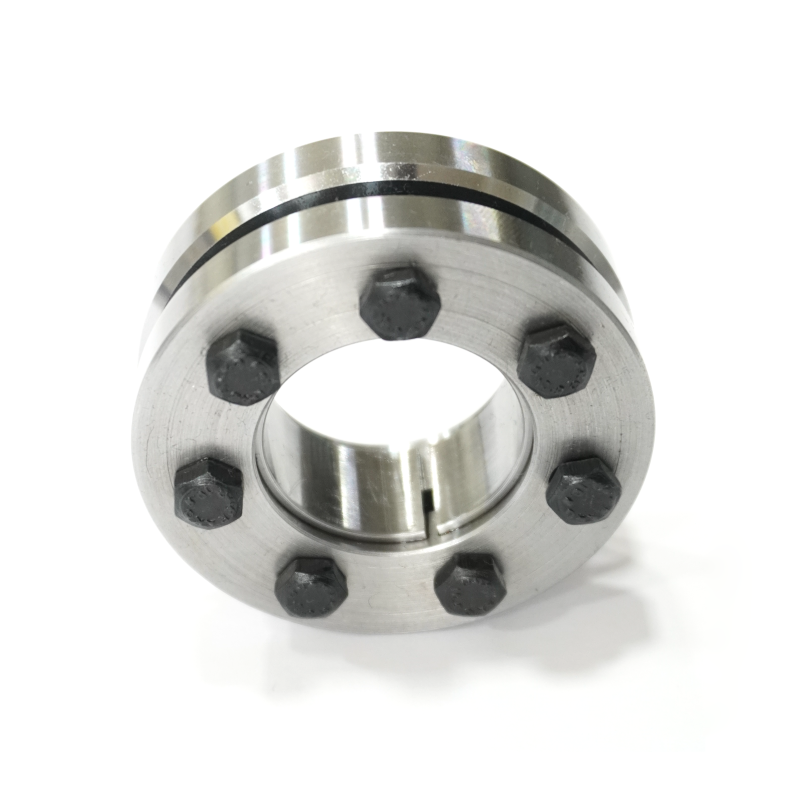

KTPPL603 K Stainless Steel

This is 3 piece + clamping bolts keyless clamping element.
This is very compact Keyless Clamping Element. This can be used in case of less space availability

Ordering Code : KTPPL603 K d x D

KTPPL603 K: Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

Suitable for High Torque and High Bending Moments.
Creates low Surface Pressure.
No axial displacement of Hub / Shaft.
Torque transmission ranges from 171 Nm to 23100 Nm for standard sizes.
Shaft diameter ranges from 24 mm to 175 mm for standard sizes.
Compact
Easy assembly and easy dismantling with detaching screws.

REQUIREMENTS

Shaft diameter tolerance: h9
dw tolerances combination:
18 to 30: H6-j6
30 to 50: H6-h6
50 to 80: H6-g6
80 to 500: H7-g6
Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
Screw tightening as per recommended screw tightening torque.

TECHNICAL DETAILS

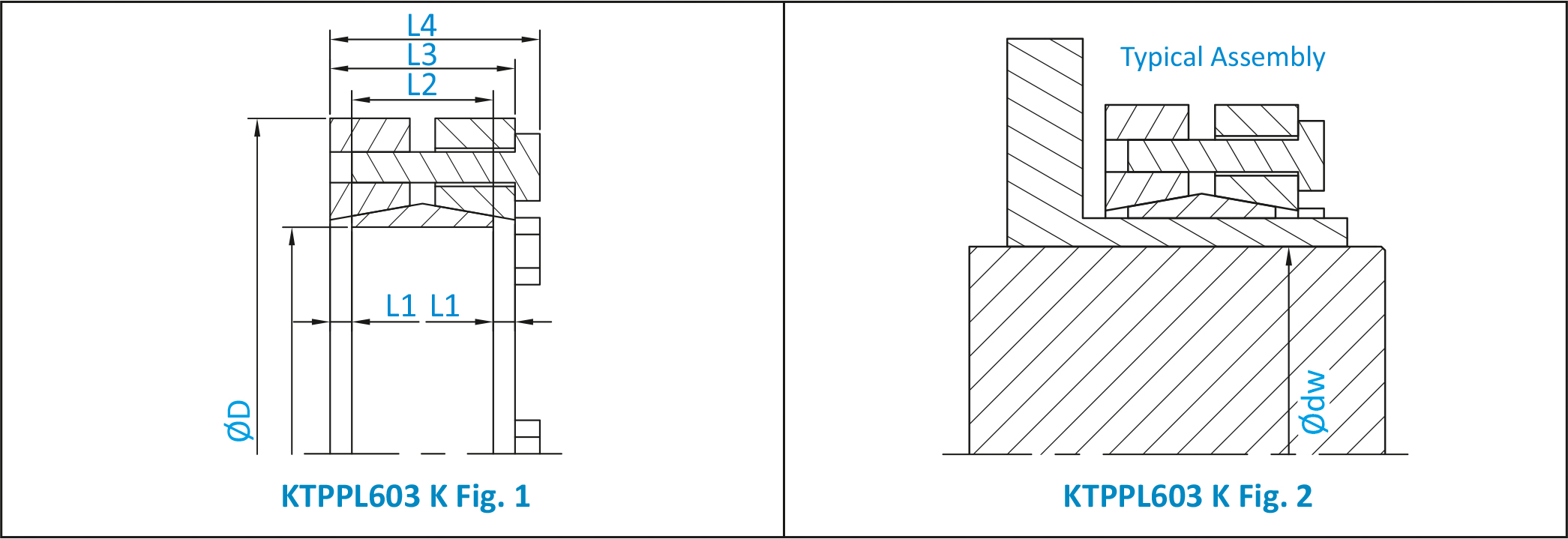

Dimentional Details

Dimension Details mm						Torque Mt Nm	Axial Force Fax KN	Screw Details
Dimension Details mm								Size	No.	Tightening Torque Nm
Ød x Ø D	L1	L2	L3	L4	Ø dw			Size	No.	Tightening Torque Nm
24×50	2	14	18	21.5	19	171	19	M5	6	3.9
					20	201	21
					21	241	23
30×60	2	16	20	23.5	24	201	17	M5	7	3.9
					25	221	19
					26	241	20
36×72	2	18	22	26	28	261	19	M6	5	6.8
					30	332	23
					31	352	24
44×80	2	20	24	28	34	352	23	M6	7	6.8
					35	442	26
					36	482	28
50×90	2.5	22	27	31	38	533	29	M6	8	6.8
					40	623	32
					42	734	36
55×100	3	23	29	33	42	683	33	M6	8	6.8
					45	854	38
					48	1055	46
62×110	3	23	29	33	48	1005	44	M6	10	6.8
					50	1206	51
					52	1357	53
68×115	3	23	29	33	50	1106	46	M6	10	6.8
					55	1407	52
					60	1759	28
75×138	3	25	31	36.3	55	1307	49	M8	7	16
					60	1709	54
					65	2060	65
80×145	3	25	31	36.3	60	1709	54	M8	7	16
					65	2060	63
					70	2362	68
85×155	4	30	38	43.3	60	2412	69	M8	10	16
					65	2462	71
					70	2513	73
90×155	4	30	38	43.3	65	2563	74	M8	10	16
					70	3216	90
					75	3819	100
95×170	4.5	34	43	48.3	65	2613	75	M8	12	16
					70	2814	93
					75	3116	101
100×170	4.5	34	43	48.3	70	3317	95	M8	12	16
					75	4020	106
					80	4824	116
110×185	5	39	49	55.4	75	3920	102	M10	9	32
					80	4824	118
					85	5628	129
125×215	5.5	42	53	59.4	85	5930	135	M10	12	32
					90	7035	150
					95	8141	166
130×215	5.5	42	53	59.4	90	6533	140	M10	12	32
					95	7839	161
					100	9246	182
140×230	6	46	58	65.5	95	8141	169	M12	10	55
					100	9347	185
					105	11055	207
165×290	6	56	68	78	115	17085	289	M16	8	135
					120	19095	316
					125	21105	343
175×300	6	56	68	78	125	18593	294	M16	8	135
					130	21105	316
					135	23115	343
