KTPPL601

This is 3 piece + clamping bolts keyless clamping element.
This is very compact Keyless Clamping Element. This can be used in case of less space availability.

Ordering Code : KTPPL601 d  x D

KTPPL601: Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Suitable for High Torque and High Bending Moments.
  • Creates low Surface Pressure.
  • No axial displacement of Hub / Shaft.
  • Torque transmission ranges from 10300 Nm to 916000 Nm for standard sizes.
  • Shaft diameter ranges from 125 mm to 460 mm for standard sizes.
  • Compact
  • Easy assembly and easy dismantling with detaching screws.

REQUIREMENTS

  • Shaft diameter tolerance: h9
  • dw tolerances combination:
  • 18 to 30: H6-j6
  • 30 to 50: H6-h6
  • 50 to 80: H6-g6
  • 80 to 500: H7-g6
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

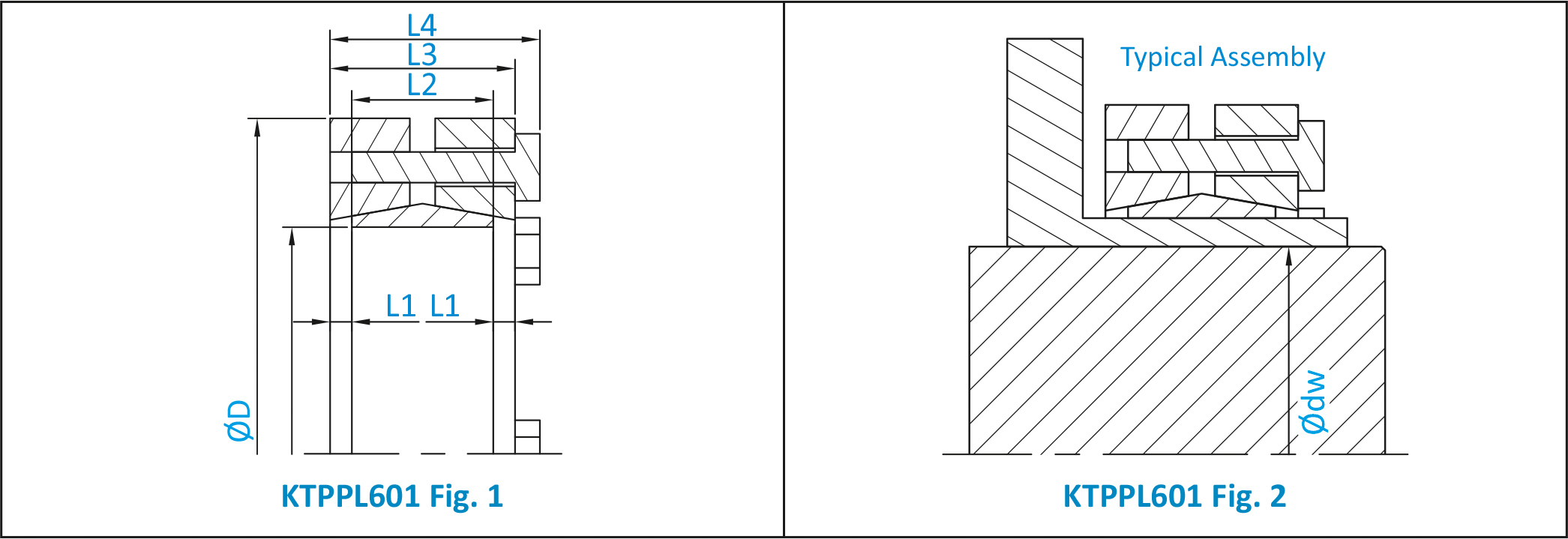

Dimentional Details
Dimension Details mm Torque
Mt Nm 		 Axial
Force
Fax KN		 Screw Details
Size No. Tightening
Torque Nm
Ød x Ø D L1 L2 L3 L4  Ø dw
125×185 6 39 51 57 95 10339 220 M10 8 59
100 11858 240
105 13524 260
140×220 6 39 51 57 110 14504 265 M10 9 59
120 18267 310
125 20090 325
155×245 6 39 51 57 130 23520 365 M10 11 59
135 25872 390
140 28420 410
165×260 8 46 62 70 135 31360 475 M12 10 100
140 34496 500
145 37730 530
175×275 8 46 62 70 145 38220 535 M12 11 100
150 41552 560
155 45080 590
185×295 8 46 62 70 155 45668 600 M12 12 100
160 49294 625
165 52920 650
195×315 8 56 72 80 165 61740 760 M12 15 100
170 66346 795
175 71050 825
200×330 8 56 72 80 175 72520 850 M12 16 100
180 77910 890
185 82810 915
220×345 9 66 84 94 180 81144 920 M16 10 250
190 91630 980
200 102900 1055
240×370 9 66 84 94 200 110740 1135 M16 12 250
210 124950 1210
215 131810 1250
260×395 10 72 92 94 220 146020 1350 M16 14 250
230 161700 1435
235 169540 1475
280×425 10 84 104 94 230 167580 1485 M16 16 250
240 185220 1570
250 203840 1660
300×460 10 84 104 94 250 210700 1720 M16 18 250
260 229320 1800
270 249900 1890
320×495 11 84 106 94 270 254800 1940 M16 20 250
280 278320 2030
290 299880 2125
340×535 11 84 106 94 290 294000 2070 M16 21 250
300 317912 2160
305 330260 2210
350×545 11 100 122 135 300 364560 2485 M20 16 490
305 377300 2540
310 392000 2590
360×555 11 100 122 135 300 352800 2400 M20 16 490
310 380240 2500
320 406700 2590
380×585 12 112 136 149 320 426300 2720 M20 18 490
325 441980 2780
330 457660 2835
390×595 12 112 136 149 330 494900 3060 M20 20 490
340 529200 3175
350 565460 3295
400×615 12 112 136 149 340 539000 3235 M20 21 490
350 575260 3360
360 613480 3480
420×630 12 120 140 153 350 566440 3300 M20 22 490
360 604660 3425
370 641900 3545
440×660 12 120 144   370 663460 3660 M20 24 490
380 704620 3785
390 746760 3910
460×685 13 132 158   390 823200 4320 M20 28 490
400 872200 4460
410 916300 4580
