KTPPL500

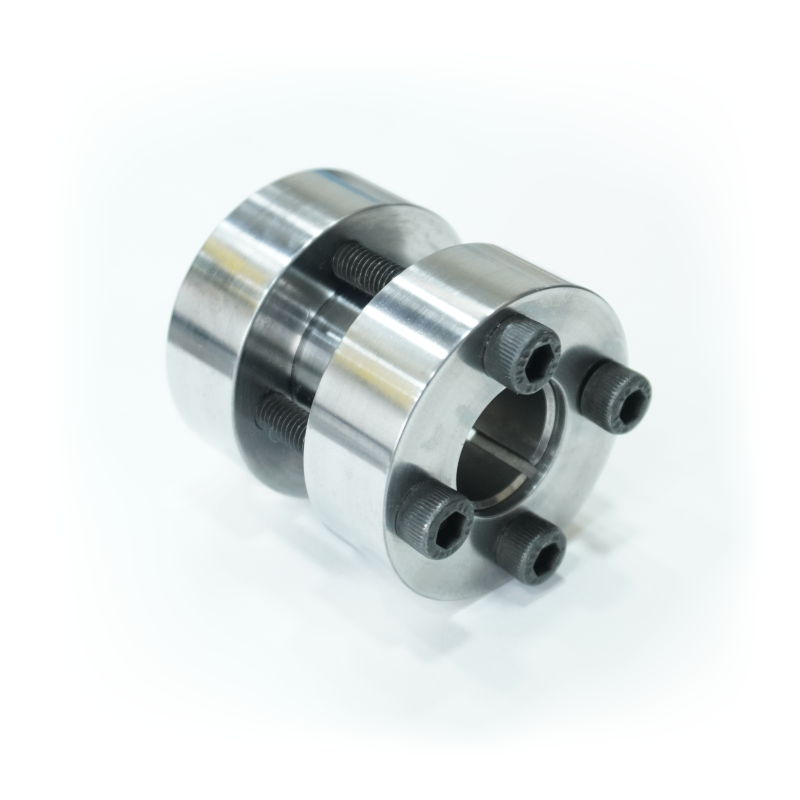

This is 3 piece + clamping bolts keyless clamping element.

Ordering Code : KTPPL500 d  x D

KTPPL500: Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Rigid and Backlash free power transmission.
  • Suitable for Medium to High Torque and axial motion / forces.
  • Creates low Surface Pressure.
  • Very less axial displacement of Hub.
  • Torque transmission ranges from 130 Nm to 7600 Nm for standard sizes.
  • Shaft diameter ranges from 14 mm to 100 mm for standard sizes.
  • Compact, less clamping bolts.
  • Easy assembly and easy dismantling with detaching screws.

REQUIREMENTS

  • Shaft diameter tolerance: h8
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

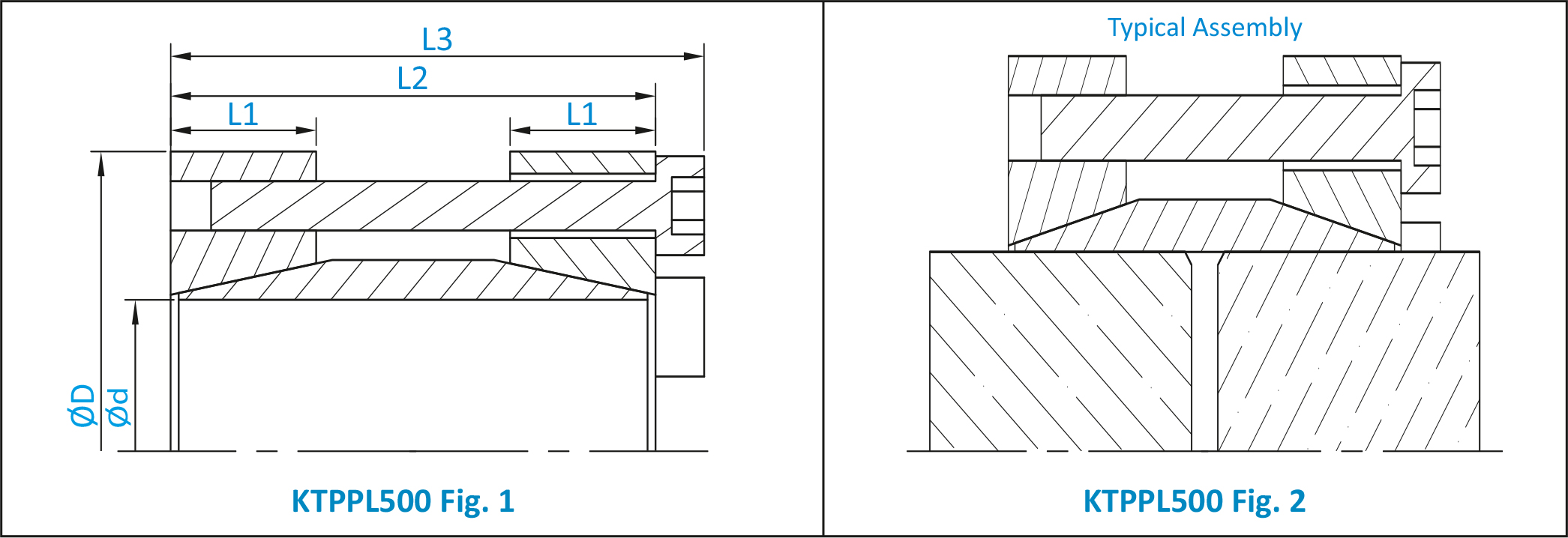

Dimentional Details
Dimension Details Torque
Mt Nm 		 Axial
Force
Fax KN		 Screw Details
Size No. Tightening
Torque Nm
Ød x Ø D L1 mm L2 mm L3 mm
14×45 15 50 56 131 19 M6 4 16
15×45 15 50 56 141 19 M6 4 16
16×45 15 50 56 151 19 M6 4 16
17×45 15 50 56 161 19 M6 4 16
18×50 15 50 56 161 18 M6 4 16
19×50 15 50 56 171 18 M6 4 16
20×50 15 50 56 181 19 M6 4 16
22×55 18 60 66 312 29 M6 6 16
24×55 18 60 66 332 28 M6 6 16
25×55 18 60 66 352 29 M6 6 16
28×60 18 60 66 342 25 M6 6 16
30×60 18 60 66 372 25 M6 6 16
32×75 20 75 83 523 33 M8 4 37
35×75 20 75 83 573 33 M8 4 37
38×75 20 75 83 624 33 M8 4 37
40×75 20 75 83 654 33 M8 4 37
42×85 22 85 93 996 48 M8 6 37
45×85 22 85 93 1056 47 M8 6 37
50×90 22 85 93 1207 50 M8 6 37
55×95 22 85 93 1710 63 M8 8 37
60×100 22 85 93 1962 67 M8 8 37
65×105 22 85 93 2163 68 M8 8 37
70×115 35 100 110 2817 82 M10 6 73
75×120 35 100 110 2917 79 M10 6 73
80×125 35 100 110 4225 102 M10 8 73
90×135 35 100 110 4728 102 M10 8 73
100×155 40 120 132 7646 152 M12 8 126
