KTPPL430

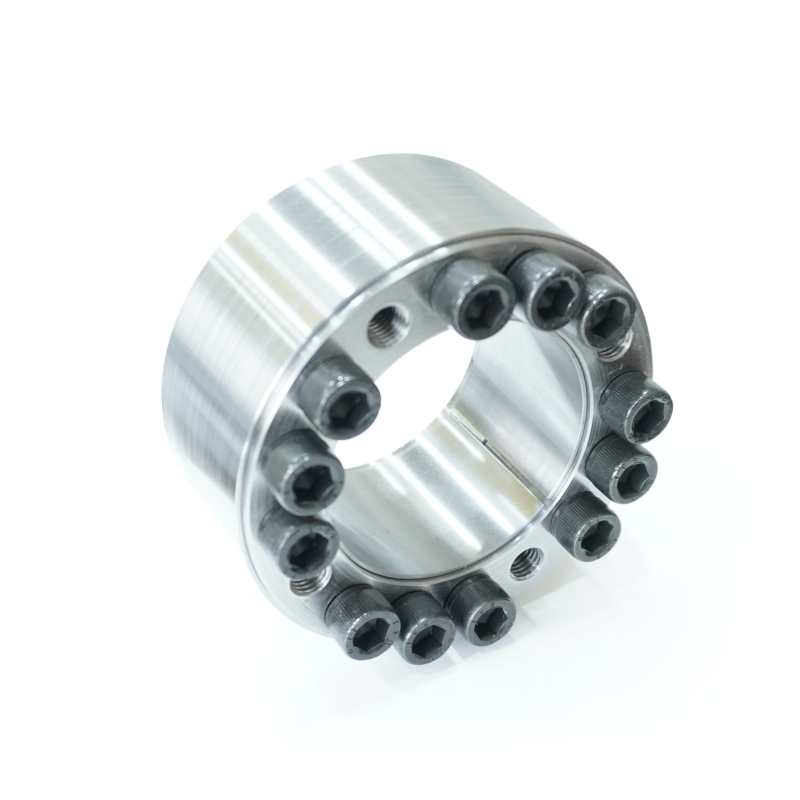

This is 4 piece + clamping bolts keyless clamping element.

Ordering Code : KTPPL430 d  x D

KTPPL430: Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Maintains the concentricity and perpendicularity of Shaft and Hub.
  • Suitable for High Torque, axial forces and High Bending Moments.
  • Creates low Surface Pressure.
  • No axial displacement of Hub.
  • Torque transmission ranges from 4000 Nm to 245000 Nm for standard sizes.
  • Shaft diameter ranges from 60 mm to 300 mm for standard sizes.
  • Easy assembly and easy dismantling with detaching screws.
  • Suitable for high radial loads.

REQUIREMENTS

  • Shaft diameter tolerance: k9 to h9
  • Hub diameter tolerance: N9 to H9
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

Dimentional Details
Dimension Details mm Torque
Mt Nm 		 Axial
Force
Fax KN		 Surface Pressure Screw Details
Shaft Hub Size No. Tightening
Torque Nm
Pw
N/mm²		 Pn
N/mm²

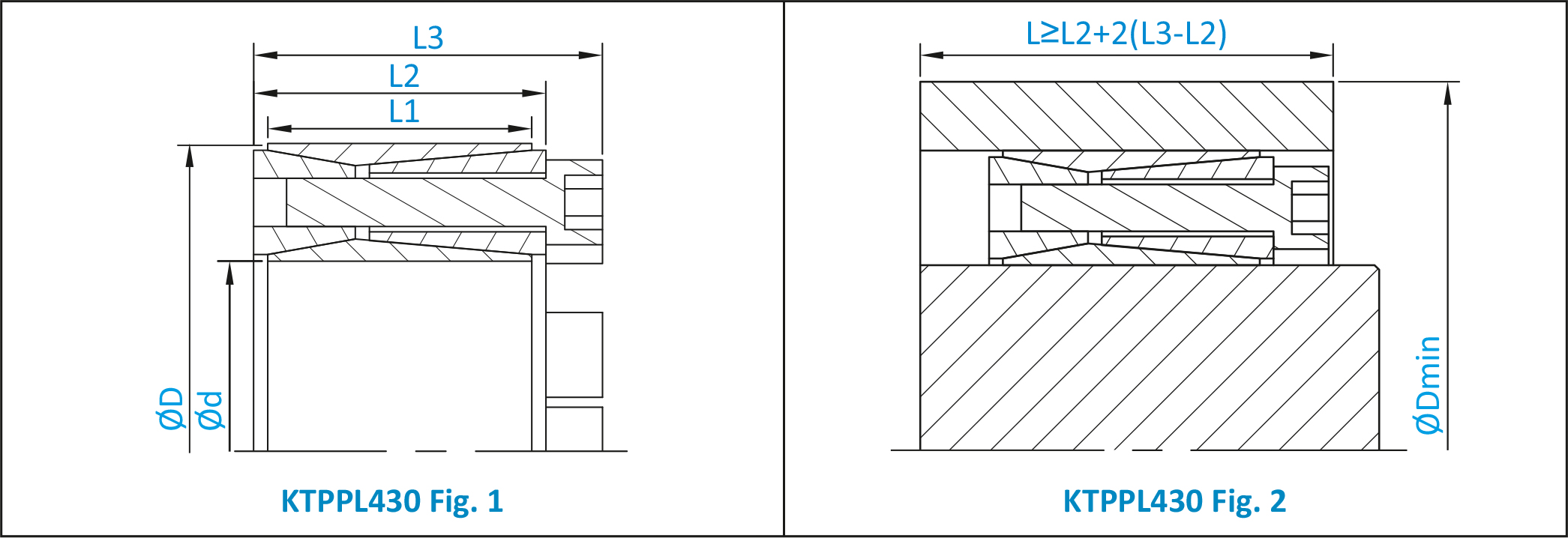

Ød x Ø D L1  L2  L3
60×100 44 50 60 4138 139 209 126 M10 8 84
