KTPPL404

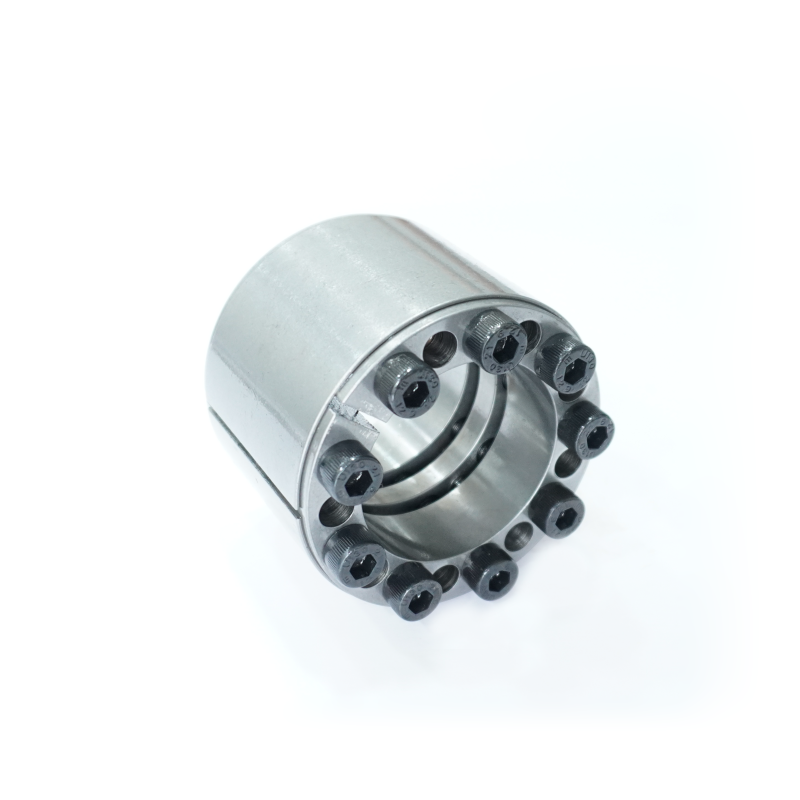

This is 3 piece + clamping bolts keyless clamping element.

Ordering Code : KTPPL404 d  x D

KTPPL404: Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Maintains the concentricity of Shaft and Hub.
  • Suitable for High Torque and High Bending Moments.
  • Creates low Surface Pressure.
  • No axial displacement of Hub.
  • Torque transmission ranges from 7000 Nm to 1212000 Nm for standard sizes.
  • Shaft diameter ranges from 70 mm to 600 mm for standard sizes.
  • Easy assembly and easy dismantling with detaching screws.
  • Suitable for high radial loads.

REQUIREMENTS

  • Shaft diameter tolerance: h8
  • Hub diameter tolerance: H8
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

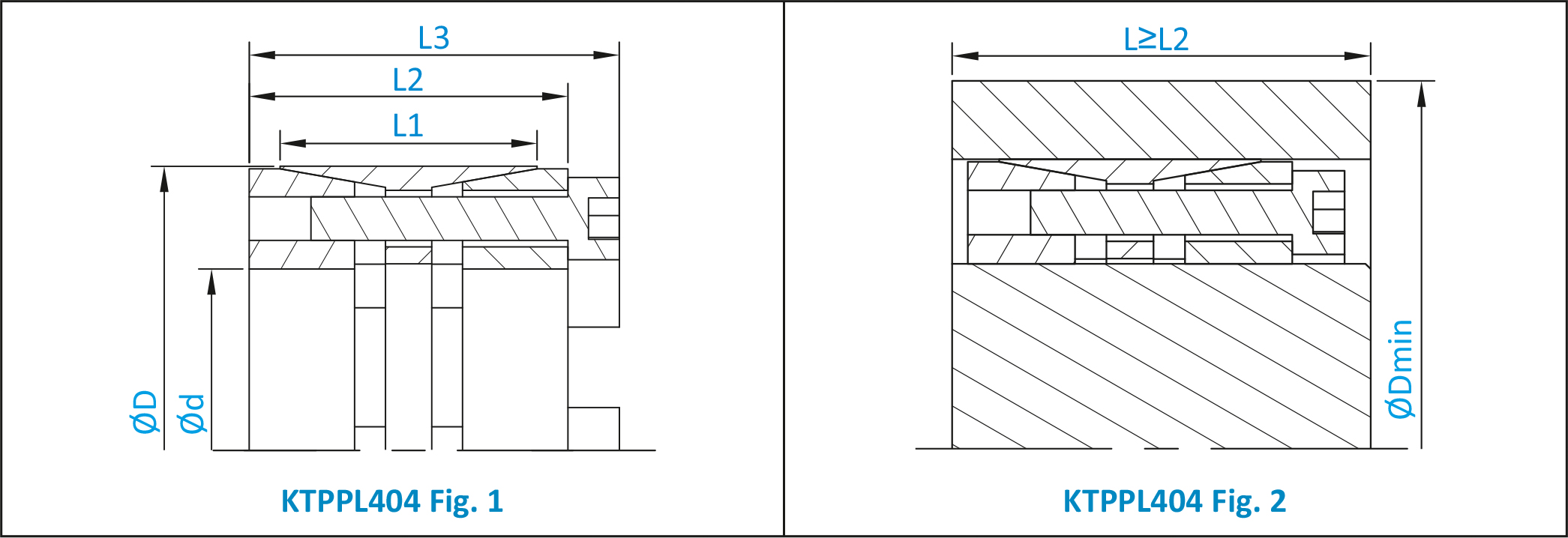

Dimentional Details
Dimension Details Torque
Mt Nm 		 Axial
Force
Fax KN		 Surface Pressure Screw Details
Shaft Hub Size No. Tightening
Torque Nm
Pw
N/mm²		 Pn
N/mm²
Ød x Ø D L1 mm L2 mm L3 mm
70×110 50 62 72 7035 201 196 128 M10 8 83
75×115 50 62 72 7538 201 183 123 M10 8 83
80×120 50 62 72 10050 251 214 147 M10 10 83
85×125 50 62 72 10653 251 202 142 M10 10 83
90×130 50 62 72 12462 281 210 150 M10 11 83
95×135 50 62 72 13065 281 199 144 M10 11 83
100×145 60 72 84 18593 372 218 155 M12 10 144
110×155 60 72 84 20100 372 199 145 M12 10 144
120×165 60 72 84 24623 402 200 150 M12 11 144
130×180 65 82 94 33668 523 208 154 M12 14 144
140×190 65 82 94 38693 553 207 157 M12 15 144
150×200 65 82 94 41708 553 193 149 M12 15 144
160×210 65 82 94 47235 593 193 151 M12 16 144
170×225 78 93 107 64320 764 205 159 M14 15 229
180×235 78 93 107 68340 764 193 153 M14 15 229
190×250 88 105 119 76883 814 162 127 M14 16 229
200×260 88 105 119 90953 915 173 138 M14 18 229
220×285 96 111 127 114068 1055 165 131 M16 15 354
240×305 96 111 127 166328 1407 202 164 M16 20 354
260×325 96 111 127 188940 1457 196 161 M16 21 354
280×355 96 111 131 227633 1608 220 179 M20 15 692
300×375 96 111 131 259793 1709 219 181 M20 16 692
320×405 124 136 156 346725 2161 188 153 M20 20 692
340×425 124 136 156 368333 2161 177 146 M20 20 692
360×455 140 155 177 484913 2714 184 150 M22 20 945
380×475 140 155 177 511545 2714 175 144 M22 20 945
400×495 140 155 177 592448 2915 183 152 M22 22 945
420×515 140 155 177 678878 3216 190 159 M22 24 945
440×535 140 155 177 711038 3216 181 153 M22 24 945
460×555 140 155 177 743198 3216 173 148 M22 24 945
480×575 140 155 177 808020 3417 173 149 M22 25 945
500×595 140 155 177 841688 3417 166 144 M22 25 945
520×615 140 155 177 980378 3819 179 155 M22 28 945
540×635 140 155 177 1018065 3819 172 151 M22 28 945
560×655 140 160 182 1131128 4020 181 159 M22 30 945
580×675 140 160 182 1171830 4020 175 155 M22 30 945
600×695 140 160 182 1212030 4020 169 150 M22 30 945
