KTPPL402

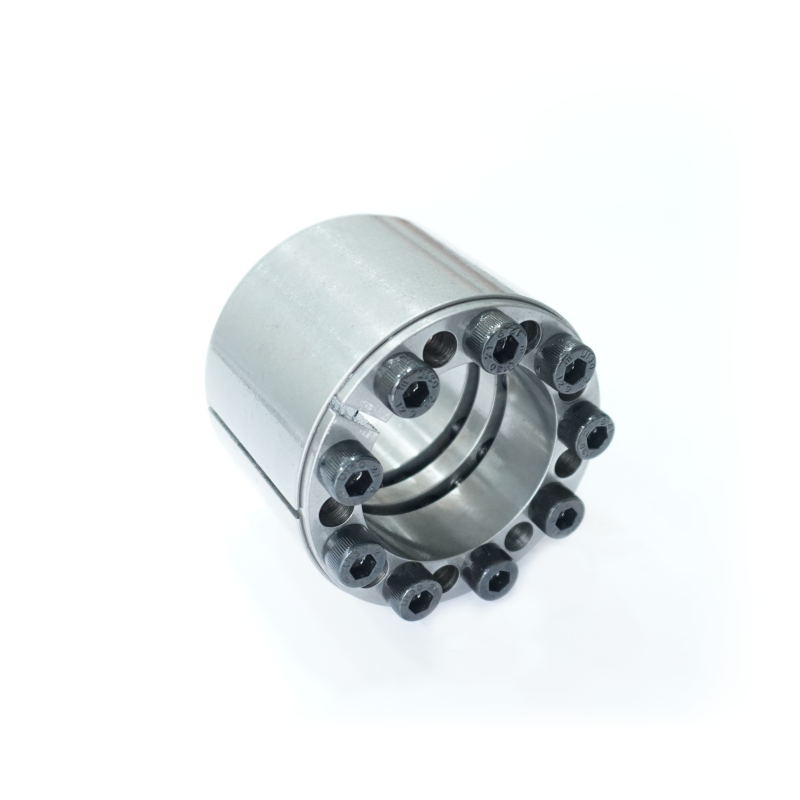

This is 3 piece + clamping bolts keyless clamping element.

Ordering Code : KTPPL402 d  x D

KTPPL402: Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Maintains the concentricity and perpendicularity of Shaft and Hub.
  • Suitable for High Torque and High Bending Moments.
  • Creates low Surface Pressure.
  • No displacement of Hub.
  • Torque transmission ranges from 840 Nm to 416000 Nm for standard sizes.
  • Shaft diameter ranges from 25 mm to 300 mm for standard sizes.
  • Easy assembly and easy dismantling with detaching screws.
  • Suitable for high radial loads.
  • Suitable for heavy duty applications.

REQUIREMENTS

  • Shaft diameter tolerance: h8
  • Hub diameter tolerance: H8
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

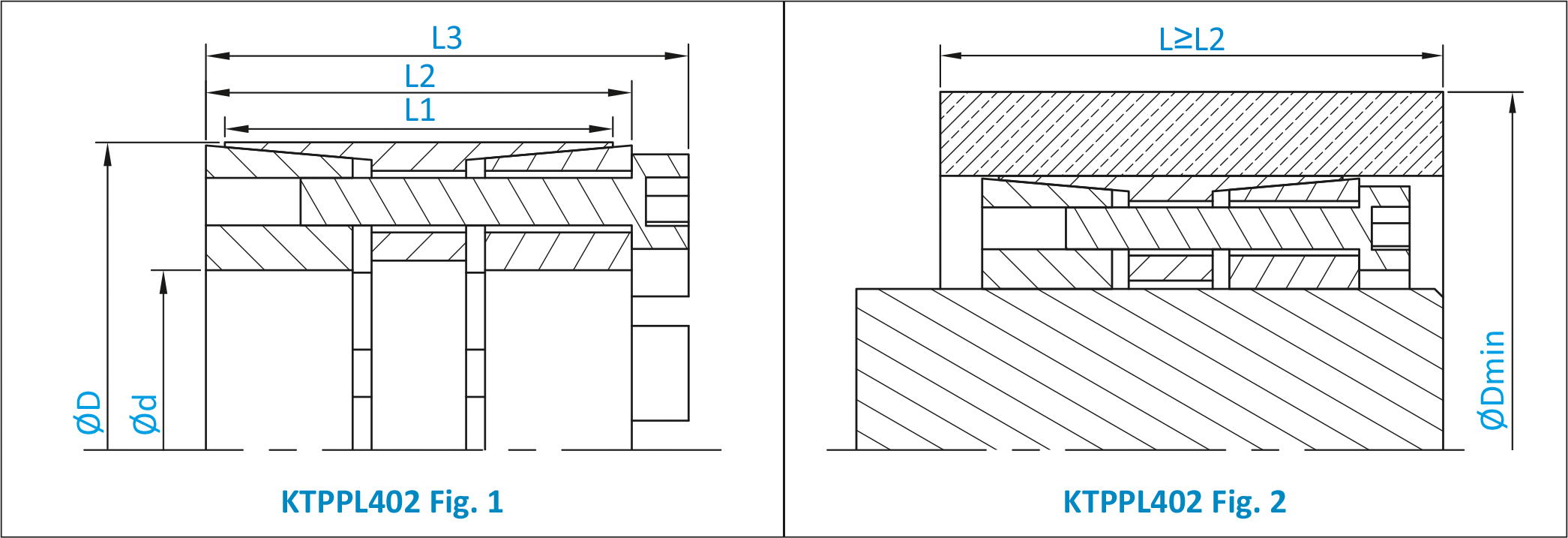

Dimentional Details
Dimension Details Torque
Mt Nm		 Axial
Force
Fax KN		 Surface Pressure Screw Details
Shaft Hub Size No. Tightening
Torque Nm
Pw
N/mm²		 Pn
N/mm²
Ød x Ø D L1 mm L2 mm L3 mm
25×50 41 45 51 843 67 223 111 M6 6 17
28×55 41 45 51 1255 89 266 135 M6 8 17
30×55 41 45 51 1355 89 248 135 M6 8 17
32×60 41 45 51 1456 89 233 124 M6 8 17
35×60 41 45 51 1556 89 213 124 M6 8 17
38×65 41 45 51 2108 110 253 147 M6 10 17
40×65 41 45 51 2259 110 240 147 M6 10 17
42×75 41 45 51 3414 161 345 194 M8 8 42
45×75 41 45 51 3715 161 322 194 M8 8 42
48×80 58 62 70 3916 161 206 123 M8 8 42
50×80 58 62 70 4116 161 198 123 M8 8 42
55×85 58 62 70 4518 161 189 122 M8 8 42
60×90 58 62 70 6124 201 216 143 M8 10 42
65×95 58 62 70 6626 201 199 136 M8 10 42
70×110 70 76 86 11245 321 219 139 M10 10 83
75×115 70 76 86 12048 321 204 133 M10 10 83
80×120 70 76 86 15562 392 230 153 M10 12 83
85×125 70 76 86 16566 392 224 152 M10 12 83
90×130 70 76 86 17570 392 212 146 M10 12 83
95×135 70 76 86 18574 392 201 141 M10 12 83
100×145 92 98 110 28614 572 204 140 M12 12 144
110×155 92 98 110 31124 572 186 131 M12 12 144
120×165 92 98 110 39658 663 199 144 M12 14 144
130×180 108 114 128 50702 783 185 133 M14 12 229
140×190 108 114 128 63754 904 201 147 M14 14 229
150×200 108 114 128 77810 1054 214 160 M14 16 229
160×210 108 114 128 82830 1054 203 154 M14 16 229
170×225 136 146 162 105420 1255 177 133 M16 14 354
180×235 136 146 162 127508 1406 191 146 M16 16 354
190×250 136 146 162 135038 1406 181 137 M16 16 354
200×260 136 146 162 142066 1406 172 132 M16 16 354
220×285 136 146 162 195278 1757 199 153 M16 20 354
240×305 136 146 162 233932 1958 200 157 M16 22 354
260×325 136 146 162 253510 1958 189 150 M16 22 354
280×355 165 177 197 349392 2510 183 143 M20 18 692
300×375 165 177 197 416158 2811 189 151 M20 20 692
