KTPPL300

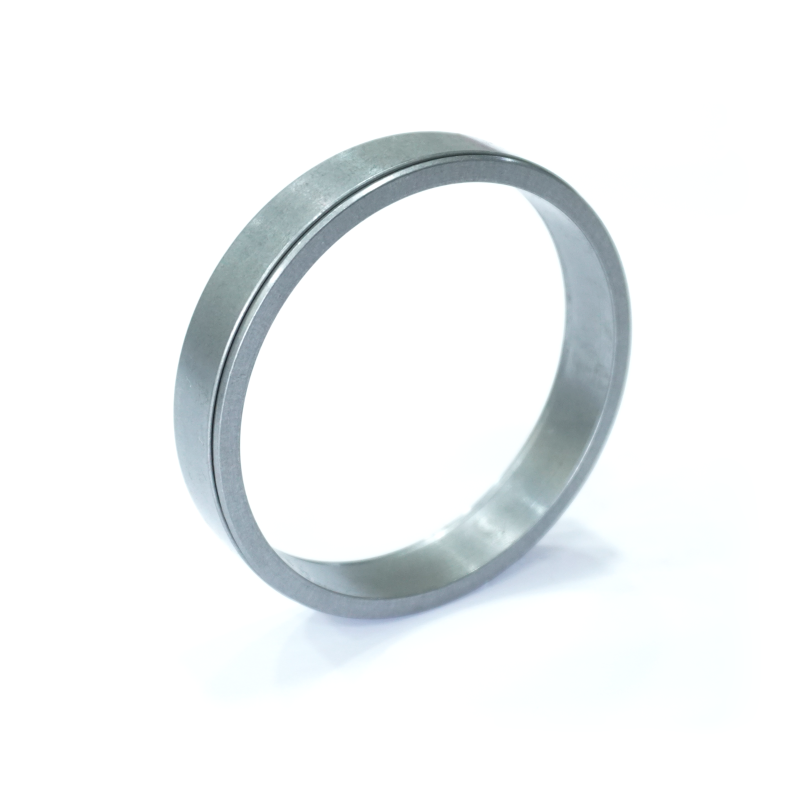

This is 2-piece keyless clamping element.
This is very compact Keyless Clamping Element. This can be used in case of less space availability.

Ordering Code : KTPPL300  d  x D

KTPPL300 : Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Maintains the concentricity of Shaft and Hub.
  • Suitable for High Torque and High Bending Moments.
  • Creates low Surface Pressure.
  • No axial displacement of Hub.
  • Torque transmission ranges from 7.3 Nm to 27500 Nm for standard sizes.
  • Shaft diameter ranges from 10 mm to 200 mm for standard sizes.
  • Compact
  • Easy assembly and easy dismantling.
  • Split version is also available.
  • Best suitable for subjected to static, pulsating, dynamic or intermittent loads.

REQUIREMENTS

  • Shaft diameter tolerance: h6 till shaft diameter 40 mm.
    Shaft diameter tolerance: h8 after shaft diameter 40 mm.
  • Hub diameter tolerance: H7 till shaft diameter 40 mm
    Hub diameter tolerance: H8 after shaft diameter 40 mm
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

Dimentional Details
Dimension Details Torque
Mt Nm		 Axial
Force
Fax KN		 Surface Pressure Preload Force
Shaft Hub E1 E2
Pw
N/mm²		 Pn
N/mm²		 KN KN
Ød x Ø D L1 mm L2 mm W1 mm
10×13 3.7 4.5 3 7.3 1.41 121 92 10.1 8.4
12×15 3.7 4.5 3 10.6 1.71 121 96 11.6 9.5
13×16 3.7 4.5 3 12.4 1.81 121 98 12.4 10.1
14×18 5.3 6.3 3 20.5 2.91 121 93 20 16.5
15×19 5.3 6.3 3 23.6 3.12 121 95 21.1 17.4
16×20 5.3 6.3 3 26.1 3.32 121 96 22.2 18.2
17×21 5.3 6.3 3 30.2 3.52 121 97 23.3 19.1
18×22 5.3 6.3 3 33.2 3.72 121 98 24.4 19.9
19×24 5.3 6.3 3 37.9 3.92 121 95 26.7 21.9
20×25 5.3 6.3 3 41.9 4.12 121 96 27.7 22.8
22×26 5.3 6.3 3 50.3 4.52 121 103 28.8 23.4
24×28 5.3 6.3 3 60.4 5.03 121 104 31 25.1
25×30 5.3 6.3 3 65.5 5.23 121 101 33.2 27.1
28×32 5.3 6.3 3 82.2 5.83 121 106 35.4 28.6
30×35 5.3 6.3 3 94.4 6.23 121 104 38.7 31.4
32×36 5.3 6.3 3 107.5 6.63 121 108 39.8 32
35×40 6 7 3 145.7 8.24 121 106 50 40.4
36×42 6 7 4 153.8 8.54 121 104 52.6 42.7
38×44 6 7 4 171.9 8.94 121 105 104 55.1
40×45 6.6 8 4 209.0 10.35 121 108 61.9 49.9
42×48 6.6 8 4 230.1 10.95 121 106 66.1 53.4
45×52 8.6 10 4 344.7 15.28 121 105 93.3 75.5
48×55 8.6 10 4 392.0 16.28 121 106 98.6 79.7
50×57 8.6 10 4 425.1 16.98 121 106 102 82.6
55×62 8.6 10 4 514.6 18.69 121 107 111 89.6
60×68 10.4 12 4 740.7 24.62 121 107 148 119
65×73 10.4 12 4 869.3 26.73 121 108 158 128
70×79 12.2 14 4 1181.9 33.77 121 107 201 162
75×84 12.2 14 4 1357.8 36.18 121 108 214 172
80×91 15 17 5 1898.4 47.44 121 106 285 230
85×96 15 17 5 2143.7 50.35 121 107 300 242
90×101 15 17 5 2403.0 53.37 121 108 316 254
95×106 15 17 5 2677.3 56.28 121 109 332 267
100×114 18.7 21 5 3698.4 73.97 121 106 445 359
110×124 18.7 21 5 4475.3 81.30 121 107 483 389
120×134 18.7 21 5 5325.5 88.74 121 108 516 415
130×148 25.3 28 6 8456.1 129.65 121 106 762 616
140×158 25.3 28 6 9806.8 139.70 121 107 808 652
150×168 25.3 28 6 11258.0 149.75 121 108 855 689
160×178 25.3 28 6 12809.7 159.80 121 109 902 726
170×191 30 33 7 17147.3 201.00 121 108 1138 917
180×201 30 33 7 19223.6 213.06 121 108 1195 962
190×211 30 33 7 21418.6 225.12 121 109 1252 1007
200×224 34.8 38 7 27530.0 274.37 121 108 1530 1233
