KTPPL200

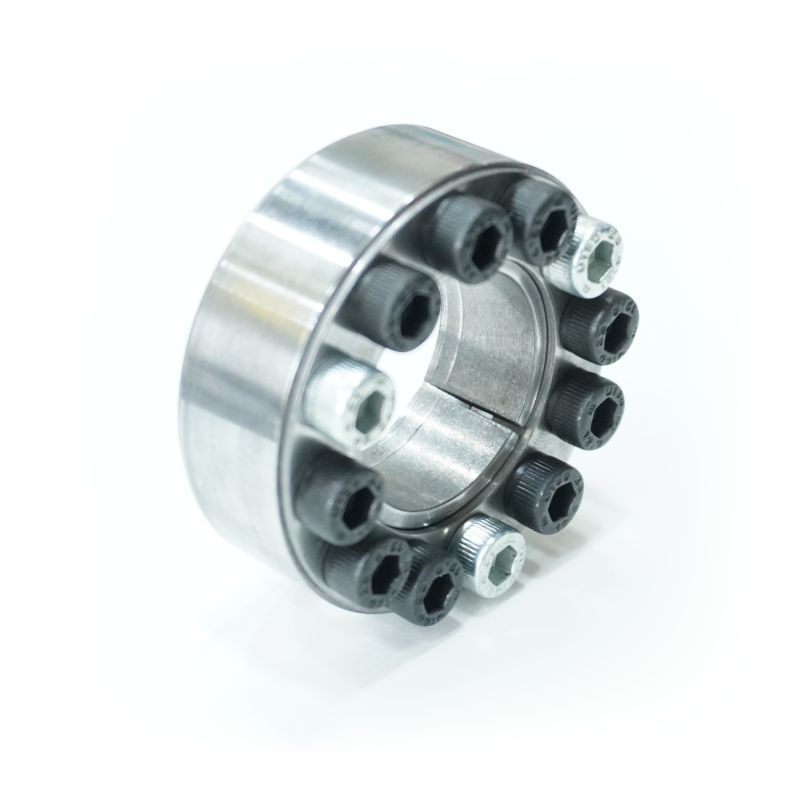

This is 4 piece + clamping bolts keyless clamping element.

Ordering Code : KTPPL200  d  x D

KTPPL200 : Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Not self centering.
  • Suitable for High Torque and High Bending Moments.
  • Creates low Surface Pressure.
  • No axial displacement of Hub.
  • Torque transmission ranges from 300 Nm to 430000 Nm for standard sizes.
  • Shaft diameter ranges from 20 mm to 400 mm for standard sizes.
  • Compact
  • Easy assembly and easy dismantling with detaching screws.
  • Suitable for high radial loads.
  • Suitable for high RPM.
  • No wear and tear.
  • Suitable for large shaft and hub tolerances.

REQUIREMENTS

  • Shaft diameter tolerance : k9 to h11
  • Hub diameter tolerance : H9 to H11
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

Dimentional Details
Dimension Details mm Torque
Mt Nm 		 Axial
Force
Fax KN		 Surface Pressure Screw Details
Shaft Hub Size No. Tightening
Torque Nm
Pw
N/mm²		 Pn
N/mm²

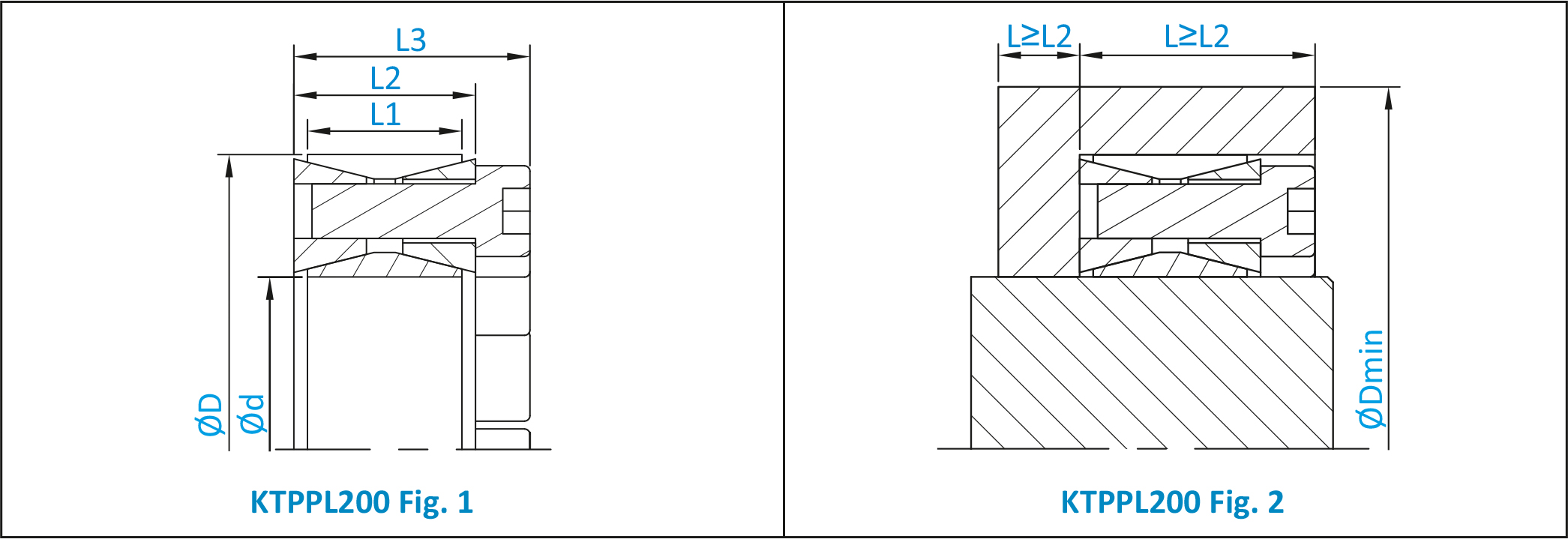

Ød x Ø D L1  L2  L3
20×47 17 20 26 302 30 237 102 M6 8 17
22×47 17 20 26 332 30 215 102 M6 8 17
24×50 17 20 26 362 30 197 95 M6 8 17
25×50 17 20 26 382 30 190 95 M6 8 17
28×55 17 20 26 633 45 253 130 M6 12 17
30×55 17 20 26 683 45 237 130 M6 12 17
32×60 17 20 26 724 45 222 119 M6 12 17
35×60 17 20 26 794 45 203 119 M6 12 17
38×65 17 20 26 1055 57 234 137 M6 15 17
40×65 17 20 26 1156 57 222 137 M6 15 17
42×75 20 24 32 1759 83 262 147 M8 12 42
45×75 20 24 32 1859 83 245 147 M8 12 42
48×80 20 24 32 2010 83 230 138 M8 12 42
50×80 20 24 32 2060 83 220 138 M8 12 42
55×85 20 24 32 2814 101 250 163 M8 15 42
60×90 20 24 32 3116 101 230 154 M8 15 42
65×95 20 24 32 3417 101 212 146 M8 15 42
70×110 24 28 38 5829 161 262 167 M10 15 83
75×115 24 28 38 6231 161 244 160 M10 15 83
80×120 24 28 38 6633 161 229 153 M10 15 83
85×125 24 28 38 7035 161 216 147 M10 15 83
90×130 24 28 38 7437 161 204 142 M10 15 83
95×135 24 28 38 9447 201 231 163 M10 18 83
100×145 26 32 44 12161 241 248 172 M12 15 144
110×155 26 32 44 13568 241 226 161 M12 15 144
120×165 26 32 44 15578 261 221 161 M12 16 144
130X180 34 38 50 21105 322 195 141 M12 20 144
140×190 34 38 50 25125 352 199 147 M12 22 144
150×200 34 38 50 29145 392 203 153 M12 24 144
160×210 34 38 50 33668 422 206 157 M12 26 144
170×225 38 44 58 41708 492 201 152 M14 22 229
180×235 38 44 58 47738 533 207 159 M14 24 229
190×250 46 52 66 59295 623 189 144 M14 28 229
200×260 46 52 66 66833 663 193 148 M14 30 229
220×285 50 56 72 87938 804 193 150 M16 26 354
240×305 50 56 72 110550 925 204 161 M16 30 354
260×325 50 56 72 135675 1055 214 171 M16 34 354
280×355 60 66 84 167835 1206 190 150 M18 32 492
300×375 60 66 84 202508 1357 199 160 M18 38 492
320×405 72 78 98 276878 1709 200 158 M20 36 692
340×425 72 78 98 294465 1709 188 151 M20 36 692
360×455 84 90 112 387428 2161 189 150 M22 36 945
380×475 84 90 112 409035 2161 180 144 M22 36 945
400×495 84 90 112 430643 2161 171 138 M22 36 945
