KTPPL136

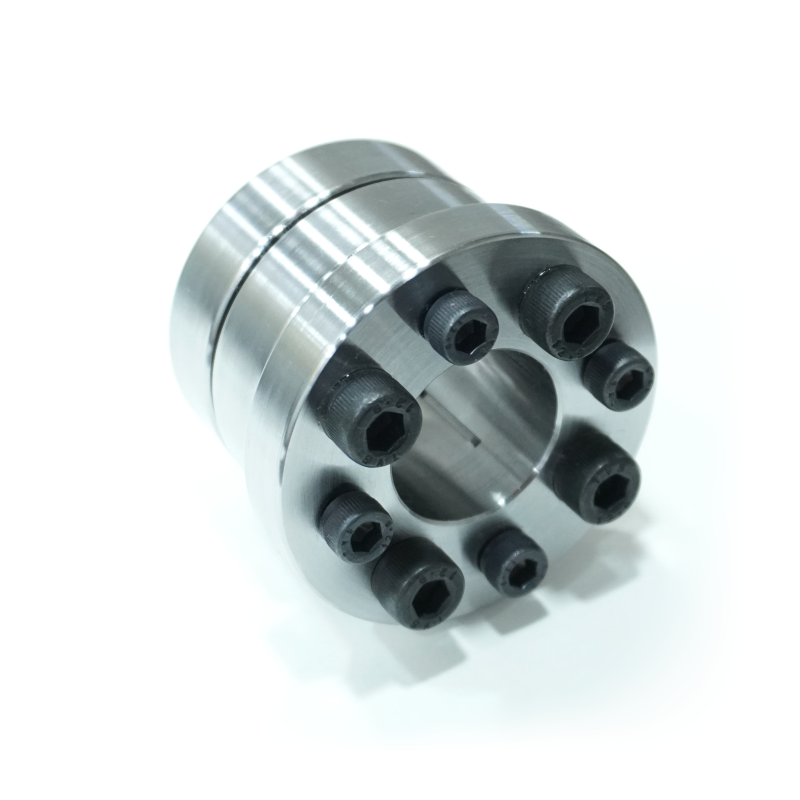

This is 3 piece + clamping bolts keyless clamping element.
This is very compact Keyless Clamping Element. This can be used in case of less space availability.
Ordering Code : KTPPL136  d  x D

KTPPL136 : Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Maintains the concentricity of Shaft and Hub.
  • Maintains very good perpendicularity of Shaft and Hub.
  • Suitable for High Torque and High Bending Moments.
  • Creates low Surface Pressure.
  • Less axial displacement of Hub.
  • Torque transmission ranges from 20000 Nm to 106000 Nm for standard sizes.
  • Shaft diameter ranges from 100 mm to 600 mm for standard sizes.
  • Easy assembly and easy dismantling with detaching screws.

REQUIREMENTS

  • Shaft diameter tolerance: h8
  • Hub diameter tolerance: H8
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

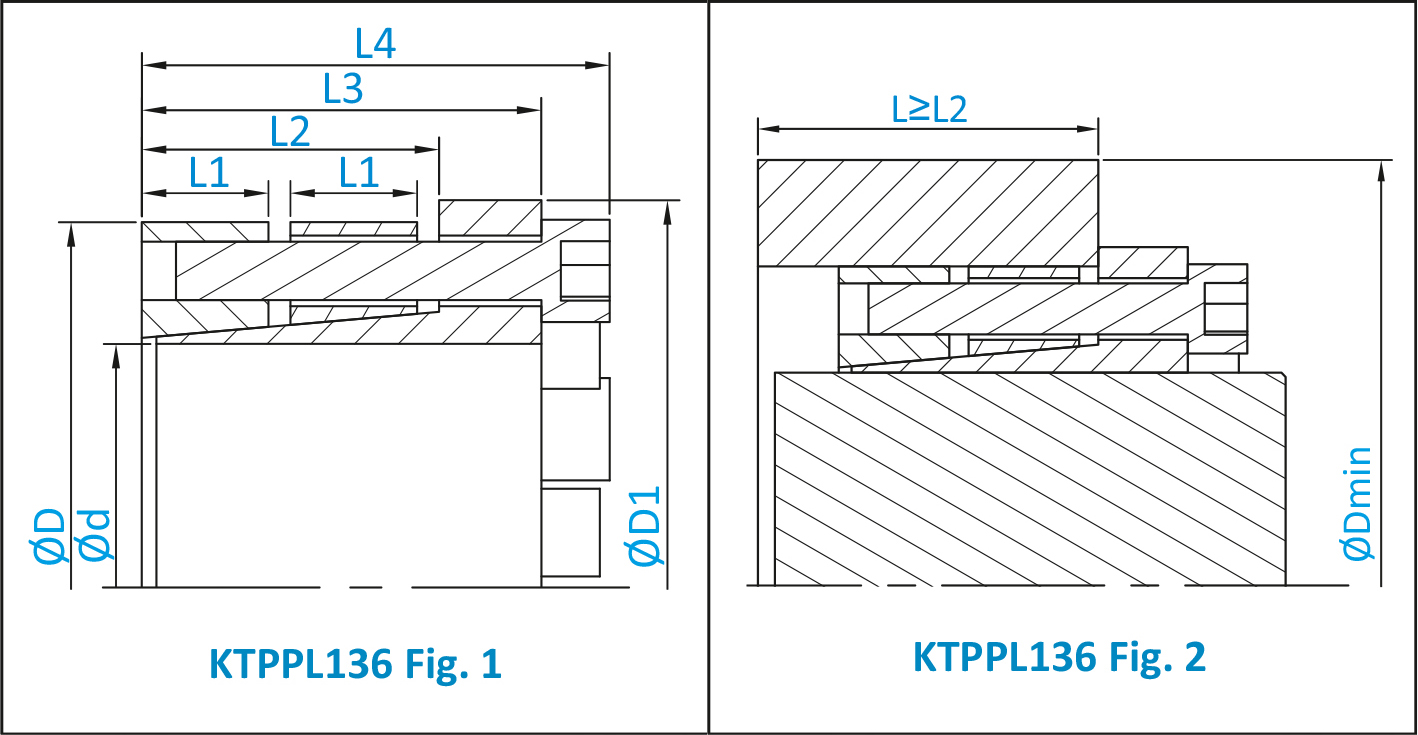

Dimentional Details
Dimension Details  mm Torque  Nm  Axial Force KN Surface Pressure Screw 1 Details Screw 2 Details
Shaft Hub No.x Size Tightening
Torque Nm		 No  Size Tightening
Torque Nm
Pw 1
N/mm²		 Pw 2
N/mm²		 Pn 1
N/mm²		 Pn 2
N/mm²
Ød x Ø D L1  L2  L3  L4   Ø D1 Mt1 Mt2 Mttot Fax1 Fax2 Faxtot
100×150 26 61 82 96 159 11484 8543 20160 233 171 405 239 175 161 115 7 x M14 230 7 x M12 145
110×160 26 61 82 96 169 12672 9347 22166 233 171 405 218 159 151 108 7 x M14 230 7 x M12 145
120×170 26 61 82 96 179 13761 10251 24172 233 171 405 200 146 142 102 7 x M14 230 7 x M12 145
130×190 30 71 95 111 199 23760 17286 41324 371 268 639 254 183 175 124 8 x M16 355 8 x M14 230
140×200 30 71 95 111 209 25641 18693 44634 371 268 639 236 170 166 117 8 x M16 355 8 x M14 230
150×210 30 71 95 111 219 27423 20000 47743 371 268 639 220 159 159 112 8 x M16 355 8 x M14 230
160×220 30 71 95 111 229 29304 21306 50952 371 268 639 206 149 151 107 8 x M16 355 8 x M14 230
170×240 40 92 122 142 249 48609 31557 80742 579 372 952 227 146 162 102 8 x M20 690 8 x M16 355
180×250 40 92 122 142 259 51480 33467 85556 579 372 952 215 138 156 98 8 x M20 690 8 x M16 355
190×260 40 92 122 142 269 54351 35276 90270 579 372 952 203 131 150 94 8 x M20 690 8 x M16 355
200×270 40 92 122 142 279 71478 46532 118856 723 466 1190 241 155 180 113 10 x M20 690 10 x M16 355
220×290 40 92 122 142 299 78606 51155 130691 723 466 1190 219 141 168 105 10 x M20 690 10 x M16 355
240×310 40 92 122 142 319 102960 66933 171112 869 558 1428 241 155 188 118 12 x M20 690 12 x M16 355
260×330 40 92 122 142 339 111573 72461 185354 869 558 1428 223 143 177 111 12 x M20 690 12 x M16 355
280×365 45 108 144 168 374 143946 101505 247139 1041 726 1768 220 154 170 116 10 x M24 1200 10 x M20 690
300×385 45 108 144 168 394 154242 108842 264892 1041 726 1768 206 144 162 110 10 x M24 1200 10 x M20 690
320×405 45 108 144 168 414 197505 139394 339215 1249 872 2122 231 161 184 127 12 x M24 1200 12 x M20 690
340×425 45 108 144 168 434 244629 172860 420357 1457 1018 2476 254 177 204 141 14 x M24 1200 14 x M20 690
360×445 45 108 144 168 454 259083 183011 445131 1457 1018 2476 240 167 195 135 14 x M24 1200 14 x M20 690
380×465 45 108 144 168 474 312543 220698 536906 1665 1163 2829 259 181 213 147 16 x M24 1200 16 x M20 690
400×485 45 108 144 168 494 329076 232356 565291 1665 1163 2829 247 172 205 141 16 x M24 1200 16 x M20 690
420×505 45 108 144 168 514 345510 243914 593475 1665 1163 2829 235 164 197 136 16 x M24 1200 16 x M20 690
440×525 59 147 178 202 534 361944 255572 621760 1665 1163 2829 171 144 121 100 16 x M24 1200 16 x M20 690
460×545 59 147 178 202 554 378378 267129 649944 1665 1163 2829 164 139 116 96 16 x M24 1200 16 x M20 690
480×565 59 147 178 202 574 394812 278787 678229 1665 1163 2829 157 134 111 93 16 x M24 1200 16 x M20 690
500×585 59 147 178 202 594 462825 326826 795078 1874 1309 3184 170 145 120 101 18 x M24 1200 18 x M20 690
520×605 59 147 178 202 614 481338 339891 826873 1874 1309 3184 163 141 115 97 18 x M24 1200 18 x M20 690
540×625 59 147 178 202 634 499851 352956 858668 1874 1309 3184 157 136 111 94 18 x M24 1200 18 x M20 690
560×645 59 147 178 202 654 518364 366021 890463 1874 1309 3184 152 132 107 91 18 x M24 1200 18 x M20 690
580×665 59 147 178 202 674 596574 421095 1024665 2082 1454 3537 163 142 115 98 20 x M24 1200 20 x M20 690
600×685 59 147 178 202 694 617166 435668 1060071 2082 1454 3537 157 138 111 95 20 x M24 1200 20 x M20 690
