KTPPL135

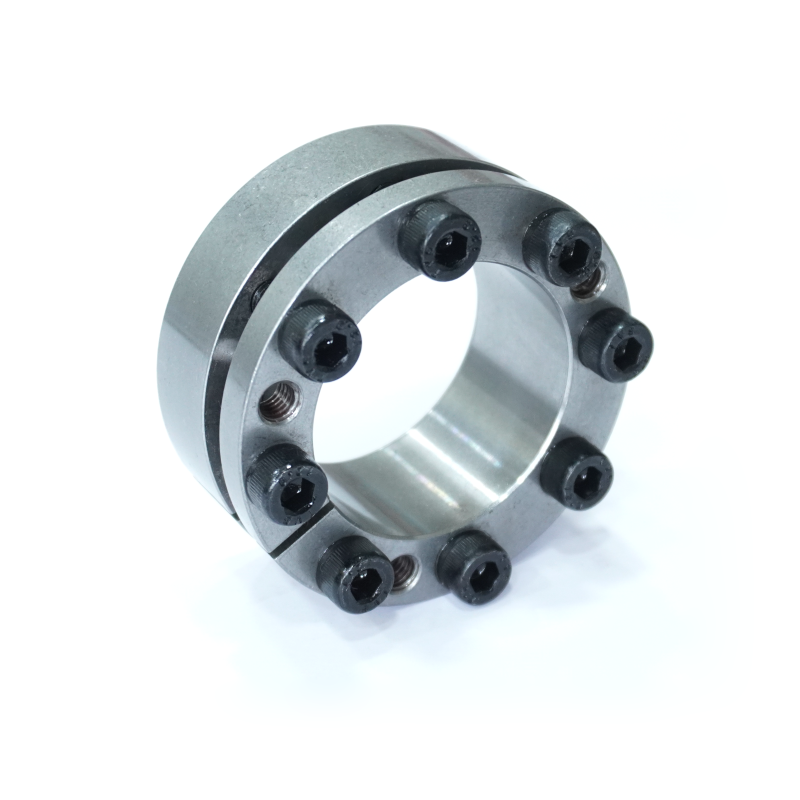

This is 2 piece + clamping bolts keyless clamping element.

Ordering Code : KTPPL135  d  x D

KTPPL135 : Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Maintains the concentricity and perpendicularity of Shaft and Hub.
  • Suitable for medium Torque.
  • Creates medium Surface Pressure.
  • Less axial displacement of Hub.
  • Torque transmission ranges from 294 Nm to 29000 Nm for standard sizes.
  • Shaft diameter ranges from 19 mm to 150 mm for standard sizes.
  • Compact
  • Easy assembly and easy dismantling with detaching screws.
  • Suitable for high radial loads.
  • Suitable for high RPM.

REQUIREMENTS

  • Shaft diameter tolerance: h8
  • Hub diameter tolerance: H8
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

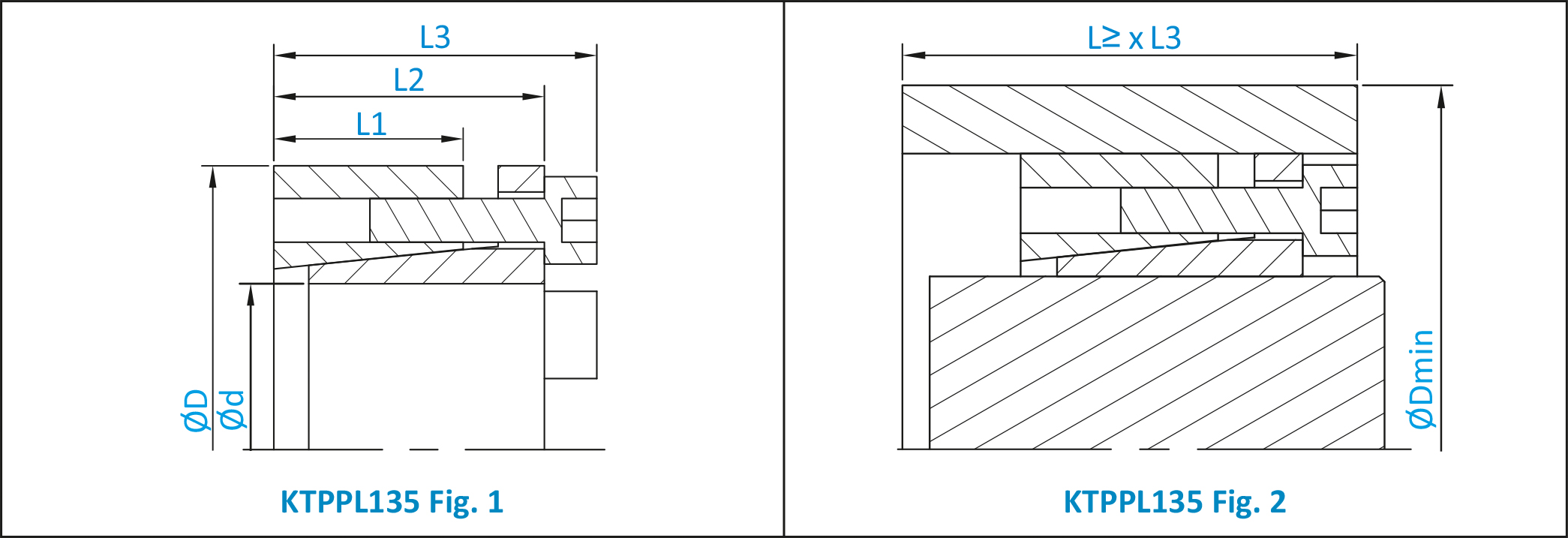

Dimentional Details
Dimension Details Torque
Mt Nm 		 Axial
Force
Fax KN		 Surface Pressure Screw Details
Shaft Hub Size No. Tightening
Torque Nm
Pw
N/mm²		 Pn
N/mm²
Ød x Ø D L1 mm L2 mm L3 mm
19×47 21.7 31 37 294 31 330 90 M6 4 17
20×47 21.7 31 37 309 31 319 90 M6 4 17
22×47 21.7 31 37 340 31 286 90 M6 4 17
24×50 21.7 31 37 433 41 330 111 M6 5 17
25×50 21.7 31 37 453 41 319 111 M6 5 17
28×55 21.7 31 37 505 41 286 101 M6 5 17
30×55 21.7 31 37 546 41 264 101 M6 5 17
32×60 21.7 31 37 762 51 297 111 M6 6 17
35×60 21.7 31 37 834 51 275 111 M6 6 17
38×65 21.7 31 37 917 51 253 101 M6 6 17
40×65 21.7 31 37 968 51 242 101 M6 6 17
42×75 25.3 38 46 1782 81 330 131 M8 6 41
45×75 25.3 38 46 1916 81 319 131 M8 6 41
48×80 25.3 38 46 2039 81 297 131 M8 6 41
50×80 25.3 38 46 2132 81 286 131 M8 6 41
55×85 25.3 38 46 2616 91 297 141 M8 7 41
60×90 25.3 38 46 2853 91 275 131 M8 7 41
65×95 25.3 38 46 3687 111 286 141 M8 8 41
70×110 33.4 50 60 5253 141 264 131 M10 7 83
75×115 33.4 50 60 5624 141 253 121 M10 7 83
80×120 33.4 50 60 6026 141 231 111 M10 7 83
85×125 33.4 50 60 7674 141 253 131 M10 8 83
90×130 33.4 50 60 8137 181 242 121 M10 8 83
95×135 33.4 50 60 10197 211 286 151 M10 10 83
100×145 40.8 58 68 11330 221 209 111 M10 10 83
110×155 40.8 58 68 12463 221 198 111 M10 10 83
120×165 40.8 58 68 16171 261 209 121 M10 12 83
130X180 45.4 65 77 21321 322 209 121 M12 10 145
140×190 45.4 65 77 23175 322 198 111 M12 10 145
150×200 45.4 65 77 29355 382 220 131 M12 12 145
