KTPPL130

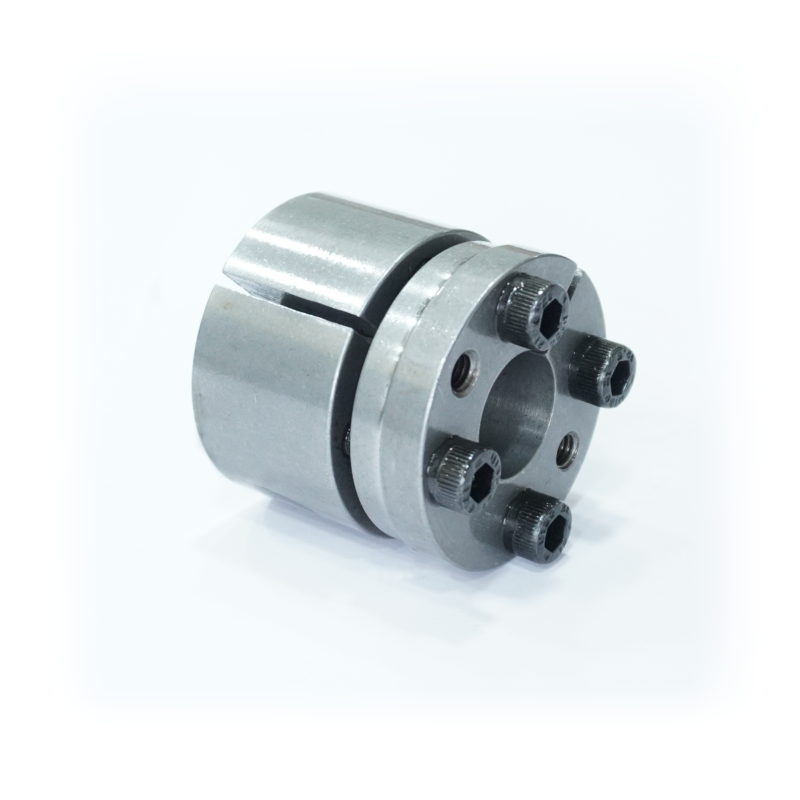

This is 2 piece + clamping bolts keyless clamping element.
This is very compact Keyless Clamping Element. This can be used in case of less space availability.

Ordering Code : KTPPL130  d  x D

KTPPL130 : Series Code
d: Inner Diameter
D : Outer Diameter

Download Keyless Clamping Element Catalogue

BENEFITS

  • Maintains very good concentricity and perpendicularity of Shaft and Hub.
  • Suitable for high to very high Torque.
  • Creates medium Surface Pressure.
  • Very less Axial displacement of Hub.
  • Torque transmission ranges from 490 Nm to 135000 Nm for standard sizes.
  • Shaft diameter ranges from 18 mm to 240 mm for standard sizes.
  • Compact
  • Easy assembly and easy dismantling.
  • Suitable for high radial loads.
  • Suitable for high RPM.

REQUIREMENTS

  • Shaft diameter tolerance: h8
  • Hub diameter tolerance: H8
  • Surface finish of Shaft and Hub: Ra ≤ 3.2 µm
  • Fitting surface free from any grease / lubrication oil / molybdenum disulphide base oil
  • Screw tightening as per recommended screw tightening torque.
TECHNICAL DETAILS

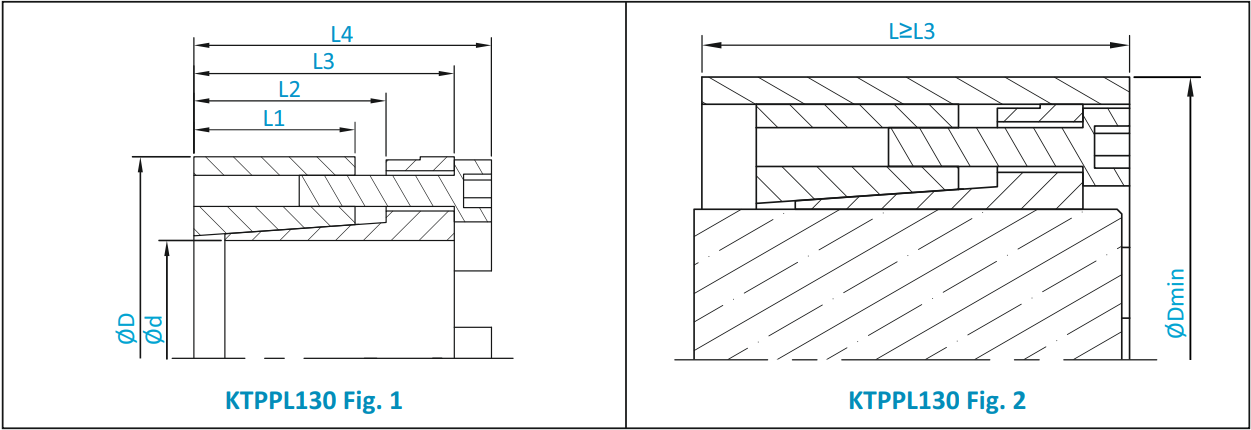

Dimentional Details
Dimension Details mm Torque

Mt Nm

 Axial

Force

Fax KN

 Surface Pressure Screw Details
Shaft Hub Size No. Tightening

Torque

Nm
Pw

N/mm²

 Pn

N/mm²
Ød x Ø D L1  L2  L3  L4
18×47 26 30 41 47 492 55 312 120 M6 6 17
19×47 26 30 41 47 513 55 295 120 M6 6 17
20×47 26 31 42 48 583 58 295 127 M6 6 17
22×47 26 31 42 48 633 58 269 127 M6 6 17
24×50 26 31 42 48 693 58 246 119 M6 6 17
25×50 26 31 42 48 724 58 237 119 M6 6 17
28×55 26 31 42 48 814 58 211 108 M6 6 17
30×55 26 31 42 48 864 58 197 108 M6 6 17
32×60 26 31 42 48 1256 77 246 132 M6 8 17
35×60 26 31 42 48 1357 77 225 132 M6 8 17
38×65 26 31 42 48 1457 77 208 122 M6 8 17
40×65 26 31 42 48 1558 77 197 122 M6 8 17
42×75 30 35 51 59 2211 111 223 126 M8 6 42
45×75 30 35 51 59 2362 111 208 126 M8 6 42
48×80 30 35 51 59 3417 141 260 157 M8 8 42
50×80 30 35 51 59 3518 141 250 157 M8 8 42
55×85 30 35 51 59 3920 141 227 147 M8 8 42
60×90 30 35 51 59 4221 141 208 139 M8 8 42
65×95 30 35 51 59 4623 141 192 132 M8 8 42
70×110 40 45 60 70 7739 221 211 135 M10 8 83
75×115 40 45 60 70 8342 221 197 135 M10 8 83
80×120 40 45 60 70 8844 221 185 124 M10 8 83
85×125 40 45 60 70 11759 281 217 148 M10 10 83
90×130 40 45 60 70 12462 281 205 142 M10 10 83
95×135 40 45 60 70 13065 281 194 137 M10 10 83
100×145 45 52 68 80 16080 322 193 134 M12 8 144
110×155 45 52 68 80 18090 322 176 125 M12 8 144
120×165 45 52 68 80 24623 412 201 147 M12 10 144
130X180 45 52 68 80 31658 492 222 161 M12 12 144
140×190 50 58 76 90 39195 563 212 157 M14 10 229
150×200 50 58 76 90 50250 673 237 178 M14 12 229
160×210 50 58 76 90 53768 673 223 170 M14 12 229
170×225 50 58 76 90 66330 784 244 185 M14 14 229
180×235 50 58 76 90 70350 784 231 177 M14 14 229
190×250 50 58 76 90 76531 806 225 171 M14 15 229
200×260 50 58 76 90 85928 859 228 176 M14 16 229
210×270 50 58 76 90 90249 859 217 169 M14 16 229
220×285 64 72 94 110 98540 895 169 131 M16 12 355
240×305 64 72 94 110 134369 1120 193 152 M16 15 355
